UV continuous ink supply system 5 color 1-liter ink tank CISS

UV continuous ink supply system 5 color 1-liter ink tank CISS
UV continuous ink supply system 5 color 1-liter ink tank CISS
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: 1000
  • Model: CISS-510-2
  • Weight: 6.00kg

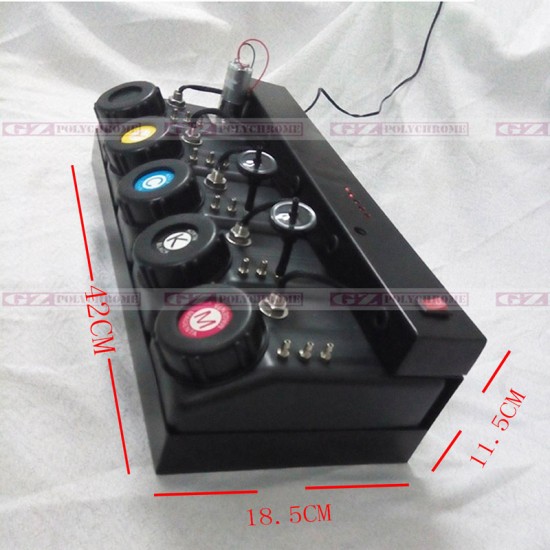

  • Dimensions: 45.00cm x 38.00cm x 25.00cm
  • SKU: UV CISS-510
110 sold
$210.00
Ex Tax: $210.00

      Item specification : :

Integrated UV ink assembly supply system CISS 1-liter 5 colors

Integrated UV ink assembly supply system /1-liter tanks( including power adapter , control boards, air filters ,level sensor ,stirring motor ) . It's compatible with Epson Mutoh Roland Mimaki Chinese UV inkjets & remoulded UV printers .

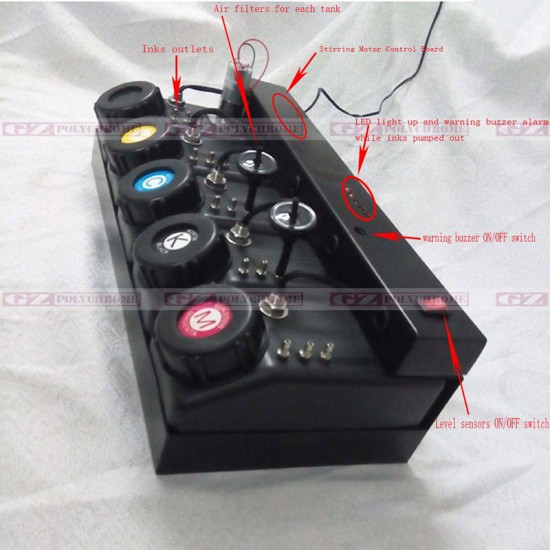

1, Steel ink level sensors in the C,M,Y,K,W ink tanks ,micro motor installed for the inks circulatively stirring in setlled time intervals , this function keeping inks flowing and depositions so that invoid to block the print head nozzles ;
2, LED lights light up and warning buzzer alarm while the inks pumped out ;
3 , Easily installation , no need connecting with the board or power of the printer ,just plugging the 12V power adapter of this set seperated , prevents from all inks depositions while the printer powered off .

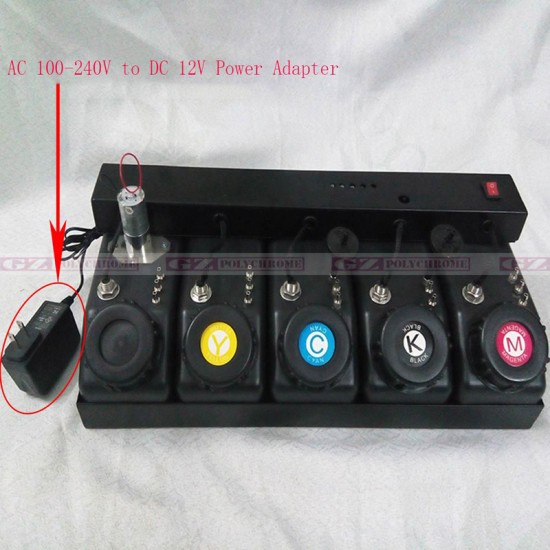

4, Plug power adapter : AC 100-240V / DC 12V , widely for 100-110V and 220V-230V voltage standards .
5, Metal Connectors :  6*4mm or 4*3mm  if the set connecting with 3*2 tube please inform us add up connector adapter like it below (1 or 2 )
6, The ink tank agitators stirring 15 seconds per 3 minutes intervals .

Mutoh Epson UV ink supply system alarm led light stirring motor intergrated CISS

Packing lists :
power adapter 1 piece ,
control boards 2 pieces ( level sensor board 1 piece , stirring motor drive board 1 piece ) ,
air filters 5 pieces ,
level sensor 5 pieces intergrated ,
stirring motor 1 piece intergrated ,
connector valve 12 pieces .
Attention :
please leave us the connector size that you need , no comments or messages left we would deliver the 4*3mm connector's system as your default option .
