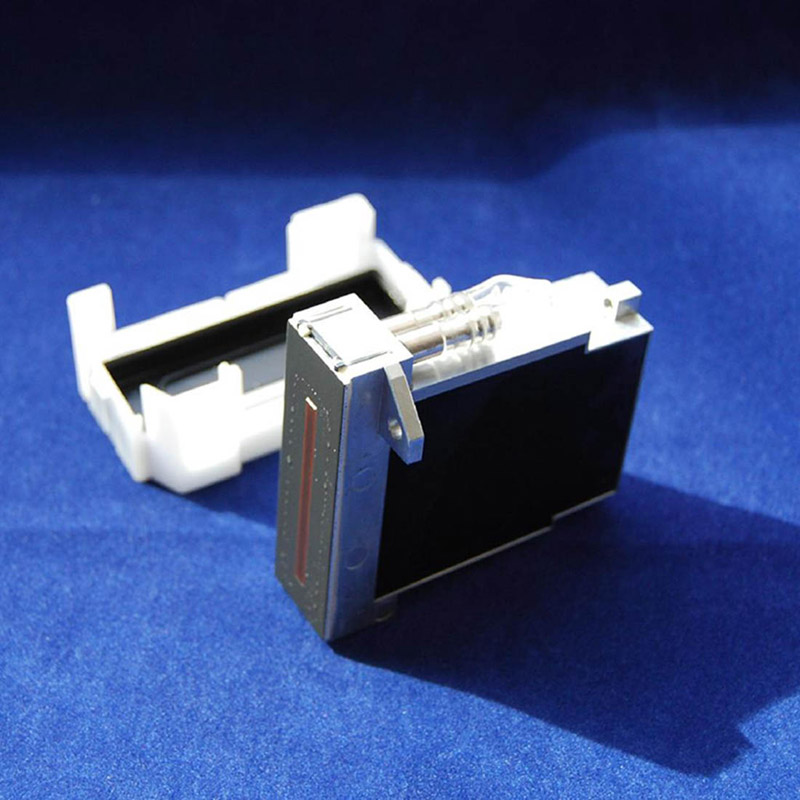

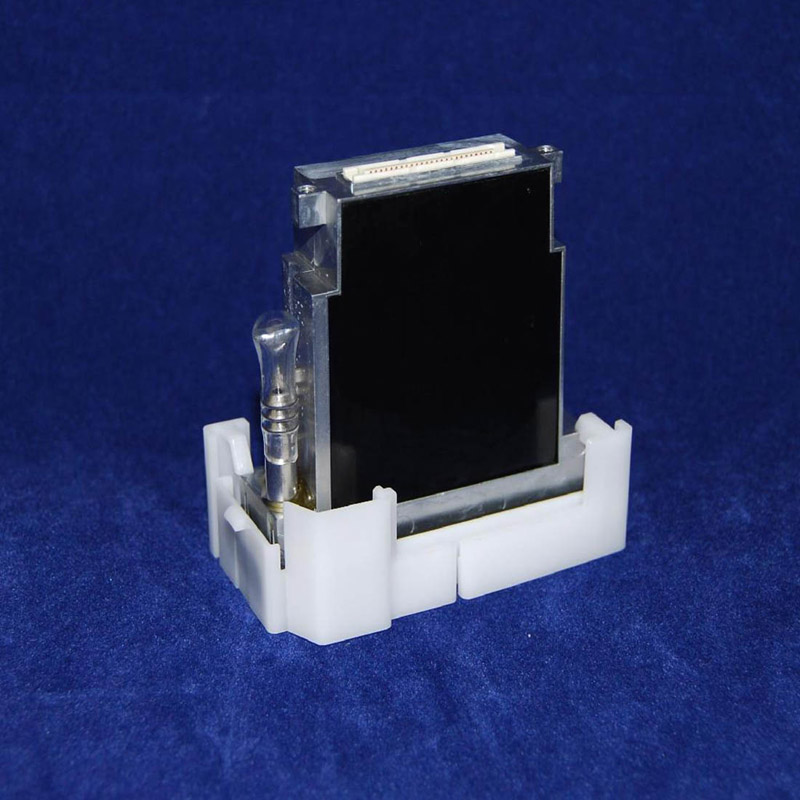

Konica KM 512MN 14pl solvent printhead for JHF VISTA outdoor

solvent printer head

      Item specification : :

Konica KM 512MN 14pl solvent printhead for JHF VISTA outdoor printer

Technology: On-Demand Piezo Electric
Native Resolution: 360 dpi
Cal. Droplet Size: 14 pico litre
Max. Drops in Greyscale: 3 drops
Tot. Amount of Nozzles: 512 (256 nozzles per line)
Nozzle Spacing: 70.5 microns
Print Width: 36.1 mm
Firing Frequency: 12.8 kHz
Ink Compatibility: Oil Based, Solvent and UV Inks
Heater: not integrated
Remarks : new original
Quantity : 1 piece

      Printer compatibility :

Konica KM 512MN 14pl solvent printhead for Allwin C8 Anhui Liyu DGI printer

Anapurna M, Anapurna M4f, Anapurna Mv, Anapurna Mw
Allwin: C8
Anhui Liyu: Maxima PZ3204-KM, Maxima PZ3206-KM
DGI: OrionJet OR-1806 , SaturnJet ST-1806
Dilli: Neo Titan UVT-1606S, Neo Titan UVT-1606W
DYSS: Apollo PTP18/3202-KC, Apollo PTP18/3204-KC, Apollo PTP18/3206-KC, Apollo PTP1804-KL, Apollo PTP1806-KL
Apollo PTP1808-KL, Apollo PTP3204-KL, Apollo PTP3204-KM, Apollo PTP3206-KL, Apollo PTP3208-KL
Flora: HJ 3200 Turbo
HP: Designjet 10000s, Designjet 9000s
JHF Vista: H8 3304FN, H8 3306FNS
Myjet: LB3208KM42, LE3208KM42, WB3208KM42, WC3208KM14
Océ: CS6060, CS6100
Rodin: K4320-A, K4320-B, K6164-B, K8320-B
Seiko: ColorPainter 100S, ColorPainter 64S
Skynet: HS-Series, PC-Series
Sun Innovations: Neo Da Vinci
Taimes: T5,T7

      Print head details:

The Konica Minolta KM512 MN print head is a robust, shear mode, piezo on-demand print head that is usable in both binary and 4 level greyscale mode, providing variable drop size and higher print quality without the use of additional print heads. The Konica Minolta KM512 MN print head has 512 nozzles with a droplet size of 14 pico litre and a native resolution of 360 dpi. It is compatible with oil based, solvent and UV inks. This print head is also known as the Konica Minolta KM512 MNX. This is Konica original print head and it includes the Head ID and the necessary waveform information. It carries a product warranty.
      Print head after-sales notifications:

All our print heads are high-precision commodity and brand new, any improper operation or substandard supporting products will damage the print heads. So after receiving the goods, please first confirm print head model and specifications, any problem, please contact with our sales staff as soon as possible. Any problem after the print heads are installed and used will be non-refundable.
