- Stock: 1000
- Model: CISS-515-1
- Weight: 8.00kg
- Dimensions: 48.00cm x 38.00cm x 35.00cm
- SKU: UV CISS-515
Item specification : :

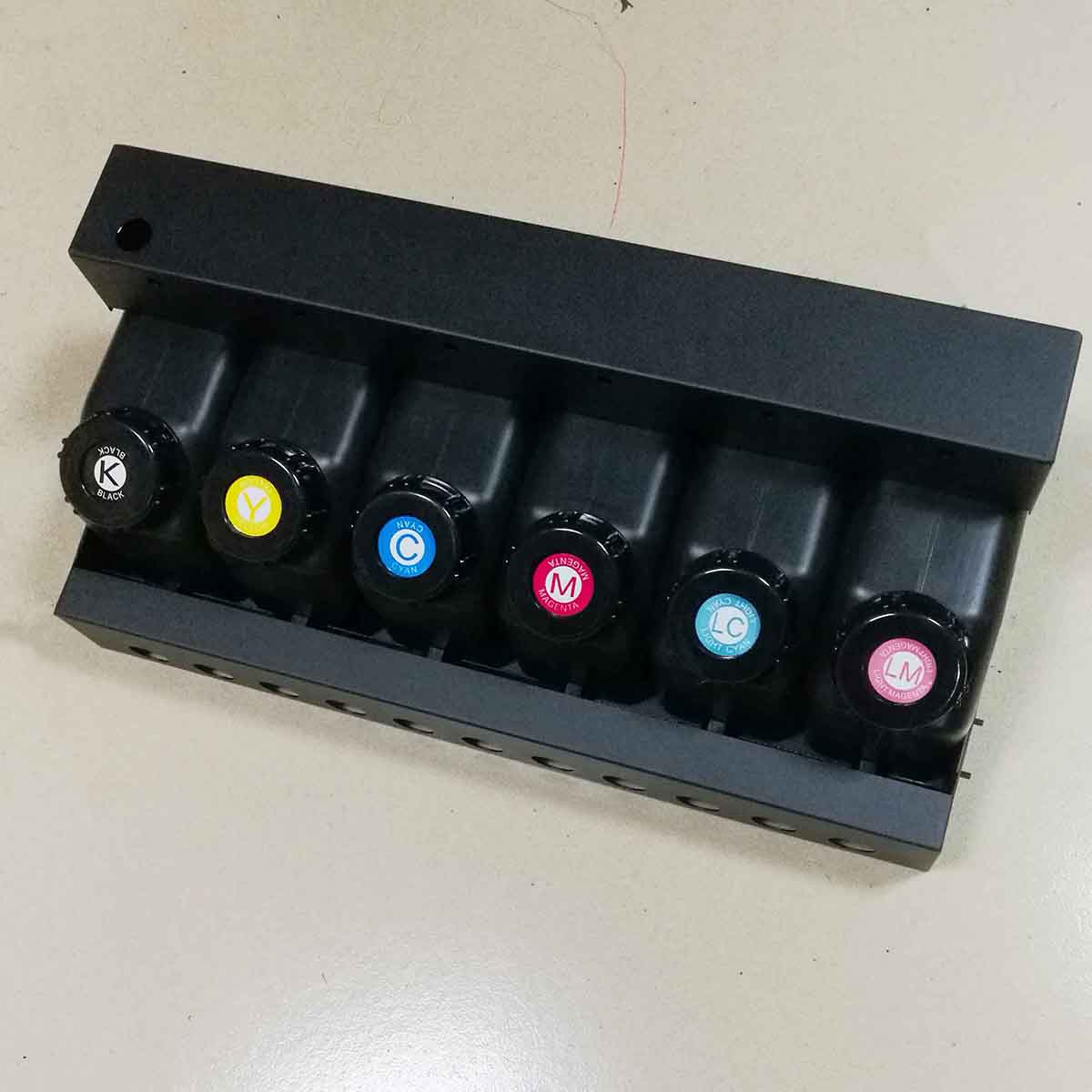

Integrated UV ink assembly supply system 1.5-liter 6 color CISS
Integrated UV ink assembly supply system 1.5-liter tanks ( including power adapter , control boards, air filters ,level sensor ,stirring motor ) . It's compatible with Epson Mutoh Roland Mimaki Chinese UV inkjets & remoulded UV printers .UV inkjet 6 color ink cartridge 1.5L uv ink supply system ink bottle assembly
1, Steel ink level sensors in the C,M,Y,K,W ink tanks ,micro motor installed for the inks circulatively stirring in setlled time intervals , this function keeping inks flowing and depositions so that invoid to block the print head nozzles ;
2, LED lights light up and warning buzzer alarm while the inks pumped out ;
3 , Easily installation , no need connecting with the board or power of the printer ,just plugging the 12V power adapter of this set seperated , prevents from all inks depositions while the printer powered off .
4, Plug power adapter : AC 100-240V / DC 12V , widely for 100-110V and 220V-230V voltage standards .
5, Metal Connectors : 6*4mm or 4*3mm if the set connecting with 3*2 tube please inform us add up connector adapter like it below (1 or 2 )
6, The ink tank agitators stirring 15 seconds per 3 minutes intervals .
Packing lists :
power adapter 1 piece ,
control boards 2 pieces ( level sensor board 1 piece , stirring motor drive board 1 piece ) ,
air filters 6 pieces ,
level sensor 6 pieces intergrated ,
stirring motor 6 pieces intergrated ,
connector valve 12 pieces .
Attention :
please leave us the connector size that you need , no comments or messages left we would deliver the 4*3mm connector's system as your default option .
