Item specification : :

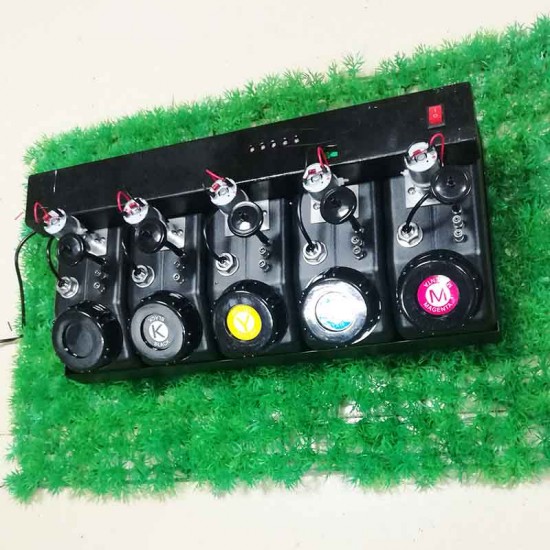

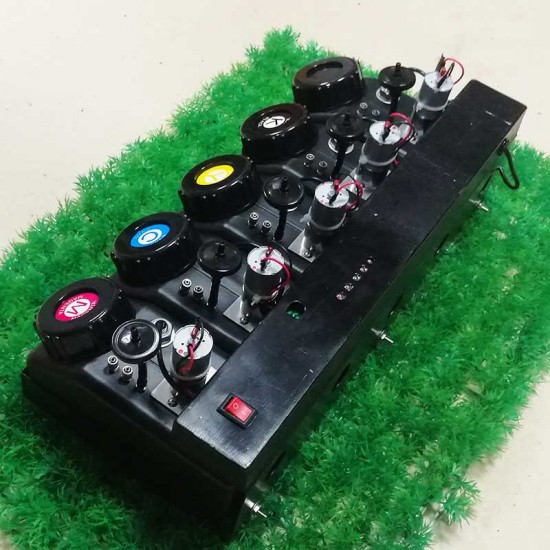

Integrated UV 5-color ink supply system 1-liter timing agitate CISS assemblyIntegrated UV ink assembly supply system /1-liter tanks( including power adapter , control boards, air filters ,level sensor ,stirring motor ) . It's compatible with Epson Mutoh Roland Mimaki Chinese UV inkjets & remoulded UV printers .
1, Steel ink level sensors in the C,M,Y,K,W ink tanks ,micro motor installed for the inks circulatively stirring in setlled time intervals , this function keeping inks flowing and depositions so that invoid to block the print head nozzles ;
2, LED lights light up and warning buzzer alarm while the inks pumped out ;
3 , Easily installation , no need connecting with the board or power of the printer ,just plugging the 12V power adapter of this set seperated , prevents from all inks depositions while the printer powered off .
4, Plug power adapter : AC 100-240V / DC 12V , widely for 100-110V and 220V-230V voltage standards .

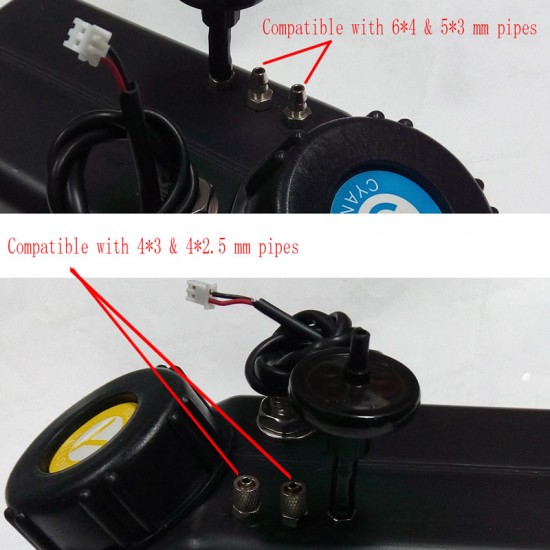

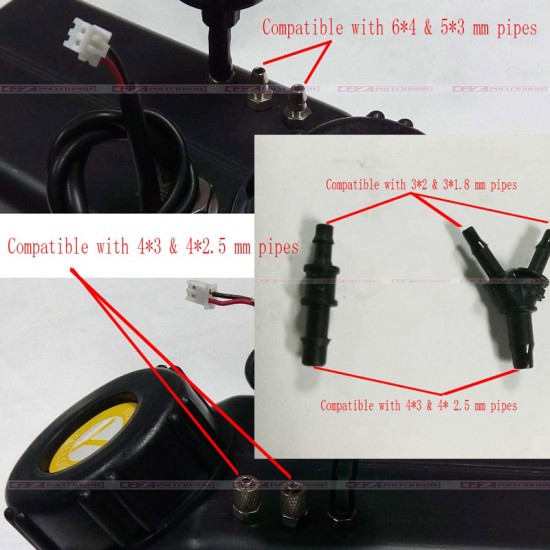

5, Metal Connectors : 6*4mm or 4*3mm if the set connecting with 3*2 tube please inform us add up connector adapter like it below (1 or 2 )
6, The ink tank agitators stirring 15 seconds per 3 minutes intervals .
Packing lists :
power adapter 1 piece ,
control boards 2 pieces ( level sensor board 1 piece , stirring motor drive board 1 piece ) ,
air filters 5 pieces ,
level sensor 5 pieces intergrated ,
stirring motor 5 pieces intergrated ,
connector valve 12 pieces .
please leave us the connector size that you need , no comments or messages left we would deliver the 4*3mm connector's system as your default option .
